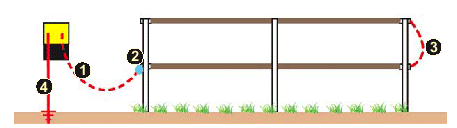

Electrical connection
To make a good electrical connection to the electrified fence, choose a high-quality high-voltage cable and connectors made of stainless steel and aluminum alloy.
Here are our suggestions.
HIGH VOLTAGE CABLE
Teflon insulated cable is a specially manufactured double-insulated cable sold by the metre. It carries the power from a mains energiser to the nearest tape point or carries power between tape runs. It can be laid above or below ground.
Rif. 28M
SOLD IN METERS
It can be buried or run in the pipes for electricity.
€ 1,75 (iva inc.)
Rif. 28P
COIL 100MT
It can be buried or run in the pipes for electricity.
€ 124,50 (iva inc.)
Rif. 28G
COIL 500MT
It can be buried or run in the pipes for electricity.
€ 568,00 (iva inc.)
Caution! Never use any other cables for the transmission of energy, because they have to be isolated for at least 10,000 v
CONNECTORS
All in stainless steel and aluminum alloys with cable isolated.
Rif. 59G
POWER CONNECTING CLIPS
Power should not be directly applied to tape as, in time it burns through the filaments. This connector slips over the tensioner (Rif. 44) or buckle (Rif. 22/24) upright and makes a perfect electrical contact.
€ 3,80 (iva inc.)
Rif. 59L
CHARGER CONNECTION WIRE
1m long connect the energizer to the belt via the tensioner
€ 5,65 (iva inc.)
Rif. 59H
INTER-CONNECTOR WIRE
Allows the right current transport from the tape on top to the one below. It is advisable to allow at least 2. Every fence, every door and at least 1 or partition (add one more after each round of the second height). It is 70 cm long and needs to be fixed on ReF. 44 or Ref. 24
€ 6,50 (iva inc.)
Rif. T1
GROUND POLE (1,5MT)
Ensures an optimal dispersion on the ground. For very large fences, consider three of them connected in a triangle.
€ 19,50 (iva inc.)
